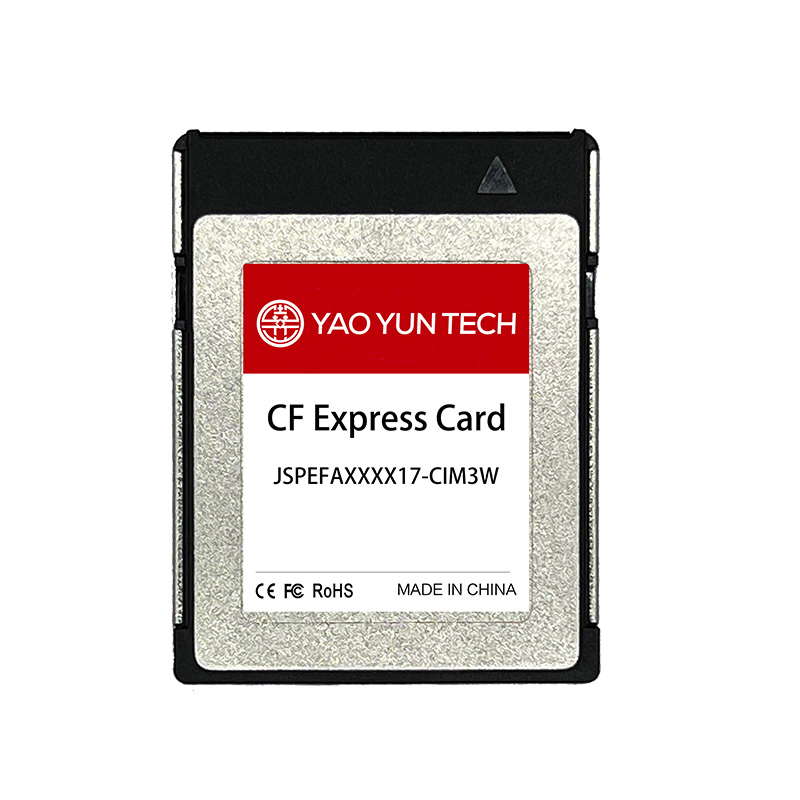

CF express Card.
CFexpress card is a high-reliability electronic disk with the characteristics of a compact structure, fast transmission speed, high reliability, strong shock resistance, and low delay. With physical destruction function. NAND FLASH uses high-performance storage particles, supports Windows, Linux, VxWorks, and other operating systems, and can be widely used in hardened computers, industrial control, recorders, video surveillance, and other fields.
Specifications: 318GB,512GB,960GB
Model:
JSPEBX318G26-CMP1Y ,JSPEBX512G2C-CMT1Y
- ATA command ...
- Customized e...
- Data integri...
- Health Monit...
- Extreme envi...
- Low power mo...
- Data Securit...
- RPMB partiti...
- pSLC technol...
- Linear recor...
- Support data...
- Support for ...
- Data recover...
- Transportati...
- Aerospace...
- Embedded Sys...
- Computer ser...
- Automated in...
Product Features
Standard TypeB Cfexpress card
Operating temperature -55°C~+85°C
Size: 38.5mm×29.6mm×3.8mm
Weight ≤20g
Power consumption ≤4W
Power supply mode (DC3.3±5%)V
Interface type: PCIE3.0X1
Continuous reading speed (AVE) 700MB/s
Continuous writng speed (AVE) 700MB/s
Transmission protocol: NVMe1.4
Storage medium PSLC / ETLC
